Chevy Small Block - Electric

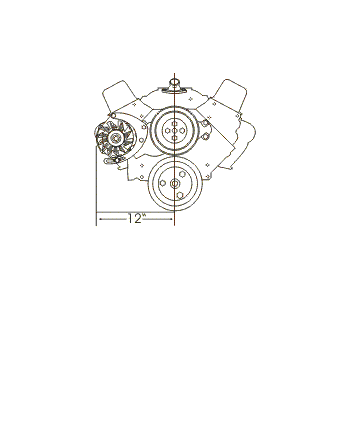

This mid-mount alternator bracket is designed to work with CSR (and possibly other) electric water pumps. The bracket bolts solid to the head and water pump, and lines the alternator up with a long water pump crank shaft pulley.

Part Number: 235R - ALT.

Dimensions

This bracket bolts to the front of the block and front of the head. Mounts the pump in approximately the same position as the factory bracket without using the exhaust bolt holes. (ElectricWater Pump Only).

Part Number: 417L - Power Steering

Dimensions

Type 2 Remote Reservoir Pump

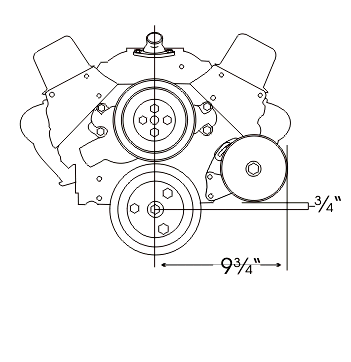

This bracket is designed to be used with the metric G.M. remote reservoir type 2 pump. Designed for street rod applications, it sits high enough to clear most chassis parts and steering gears. Pump is driven off the inner groove of a 3 groove crank pulley. Pump uses an aluminum V-belt pulley available from us or other street rod suppliers.
Part Number: 410L - Power Steering

Dimensions
