0419 514 327Refrigerant Hose and Hard Lines
Hose
Barrier Type Refrigerant Hose
All Vintage Air line kits use barrier type refrigerant
line for use with HFC-134a and R-12 refrigerants.
Includes adequate hose length to connect complete system, all
O-ring fittings and crimp ferrules.134a systems include fittings
with service ports. Includes: 6ft. of #6, 4ft. of #8, 5ft. of #10
barrier hose. Standard or extra length kits available.

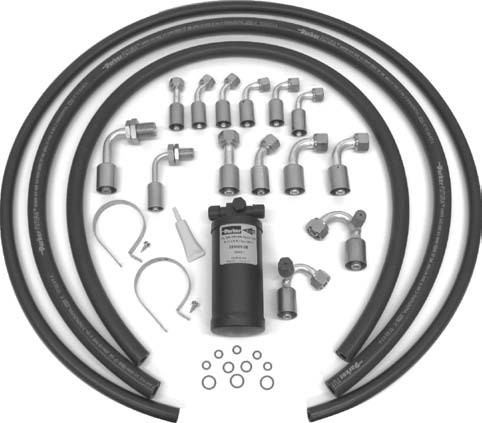

Standard Refrigeration Line Kit
 |
31700-VUD Hose kit w/drier 134a 31702-VUD Hose kit w/o drier 134a 31300-VUD Hose kit w/drier R-12 31302-VUD Hose kit w/o drier R-12 31700-VBD Hose kit w/drier (for 134a beadlock) 31703-VBD Hose kit w/o drier (for 134a beadlock) 31300-VBD Hose kit w/drier (for R-12 beadlock) 31302-VBD Hose kit w/o drier (for R-12 beadlock) 315070-VUA Beadlock kit w/o individual bulkhead fittings |

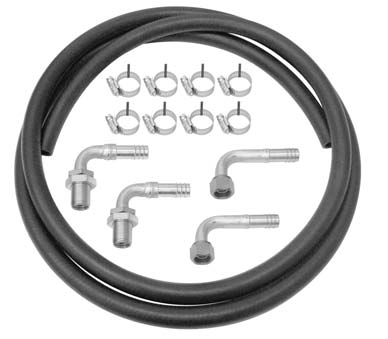

Standard Heater Hose Kits
Choose straight or 900 firewall bulkhead fittings. Includes: 10 feet of 5/8” heater
hose, 2 standard male O-ring 90 degree bulkhead fittings (or 2 standard straight
bulkhead fittings), 2 female O-ring 90 degree fittings and 8 hose clamps.
 |
31400-VUD 900 bulkhead fitting heater hose kit 31401-VUD Straight bulkhead fitting heater hose kit |
Refrigerant Line Size Identifier
 |
||
3/4” O.D. #6 5/16” I.D. |
29/32” O.D. |
1” O.D. #10 1/2” I.D. |
| Size | I.D. | Description |
| #6 | 5/16” | Liquid hose: condenser to drier to evaporator |
| #8 | 13/32” | Discharge hose: compressor to condenser |
| #10 | 1/2” | Suction hose: evaporator to compressor |
| Barrier Refrigerant Hose by the foot for HFC-134a or R-12 systems |
||
| 31854-VUD | #6 Hose (specify length) | |
| 31855-VUD | #8 Hose (specify length) | |
| 31856-VUD | #10 Hose (specify length) | |
Hard Lines
U-Bend-Em Lines & Weld-In Ports
 |

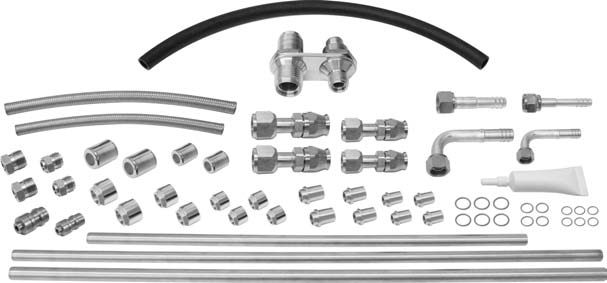

Improved Stainless Steel A/C Line Kit |
 |

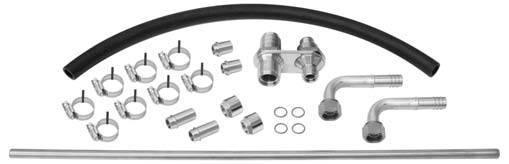

Stainless Steel Heater Line Kit Include stainless steel tubing (60” of 1/2” #10 tubing) 2 tube ends with nuts, 2 tube ends with barbs, rubber hose for flex areas and 1 heater bulkhead plate. 31100-VUQ Proline heater line kit 31101-VUQ Proline heater kit without bulkhead fittings. |
Stainless Hardline Parts
 |
Stainless 5/8” barb tube end (heater) 36090-MPA |
 |
Stainless rear exit head fitting (drilled) 36630-MPA (use with 36300-MPA) |
 |
Stainless #10 male O-ring to 3/8” NPT adapter (heater) |
 |
Stainless compressor nut 36300-MPA (use with head fitting) |
 |
Stainless #10 male O-ring to 1/2” NPT adapter (heater) |
 |
Stainless O-ring weld-on line ends #6 ..........36400-MPA #8 ..........36500-MPA #10 ........36600-MPA |
 |
Stainless TiteFit TM Nut #6 ..........36140-MPA #8 ..........36240-MPA #10 ........36340-MPA |
 |
Stainless male weld-on O-ring nut #6 ..........36154-MPA #8 ..........36255-MPA #10 ........36256-MPA |
 |
Stainless tubing stock 06300-VUG - 5/16”......#6 (ordered per foot) 06301-VUG - 3/8”........#8 (ordered per foot) 06302-VUG - 1/2”........#10 (ordered per foot) |
ProlineTM TiteFitTM Hard Line Kits (aluminum)
|
For use with Vintage Air ProLineTM compressor bracket 35135-VUG-A Tite Fit line kit for pre-’35 model cars and trucks 134a 35135-VUQ-A Tite Fit line kit with Tite Fit Nuts for pre-’35 model cars and trucks (polished) 134a 35136-VUG-A Tite Fit line kit for ’35-up model cars and trucks 134a 35136-VUQ-A Tite Fit line kit with Tite Fit Nuts for ’35-up model cars and trucks (polished) 134a 38110-VUQ Double line clamp with bracket and hardware. (included with all “-VUQ” Tite Fit kit part numbers. |
 1935-up vehicle applications with top mount steel compressor bracket |
For use with Steel-eez® compressor brackets 35137-VUG-A Tite Fit line kit for ’35-up model cars and trucks 134a 35137-VUQ-A Tite Fit line kit with Tite Fit Nuts for ’35-up model cars and trucks (polished) 134a 38112-VUQ Double line clamp with bracket and hardware. (included with all “-VUQ” Tite Fit kit part numbers. |
