0419 514 327Condensers
Vintage Air Designed SuperFlowTM Micro Tube Condenser
This SuperFlow TM condenser design has once again demonstrated Vintage Air’s commitment to leading edge technology and superior
product quality. The importance of this unique new micro tube design and its improved refrigerant flow cannot be over emphasized.
By providing increased refrigerant contact with the micro tube walls and multiple passes per circuit for low restriction pathway,
the SuperFlow TM condenser provides up to 40% more capacity than a comparably sized tube and fin condenser.
Perfect for late model cars with more grill area.
With Male O-ring fittings. Top #8, Bottom #6
03701-OVA condenser with brackets 12” tall x 20” wide x .83” thick
03704-OVA condenser with brackets 12” tall x 24” wide x .83” thick
03260-VUC condenser with brackets 14” tall x 18” wide x .83” thick
03261-VUC condenser with brackets 14” tall x 20” wide x .83” thick
03262-VUC condenser with brackets 14” tall x 22” wide x .83” thick
03263-VUC condenser with brackets 14” tall x 24” wide x .83” thick
03770-VUC unpainted condenser w/o brackets 14”tall x 25.5”wide x .83” thick
(All condensers include universal mount bracket kit)

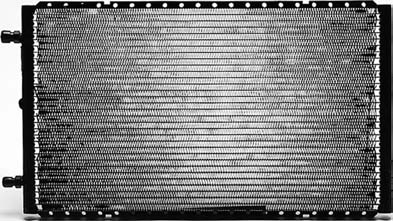

03701-OVA condenser

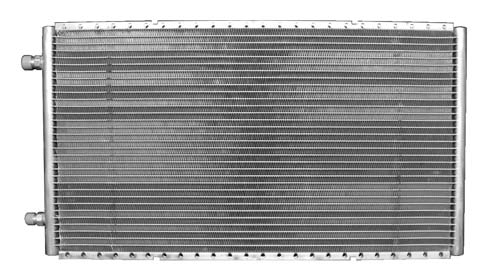

03770-VUC unpainted condenser
Monster SuperflowTM Condenser For Dual Air Or High Capacity Systems

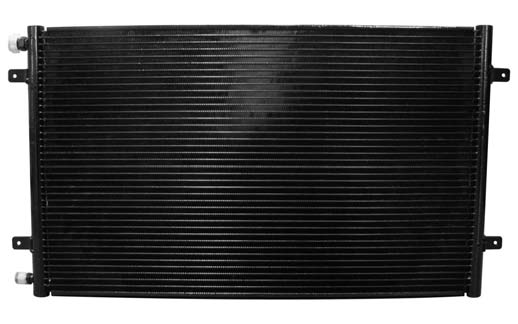

037030-OVR Condenser with straight outlets.
28.5” Long x 16” Tall x 1” thick.
Overall length with fittings 30”
Vertical SuperFlowTM Condenser
The only condenser anywhere designed for street rods (‘32- 40 Fords and most pre-’48 cars) that will fit the tight spots and still deliver big condenser performance!
Note: Never run a parallel flow condenser on its side. The side tanks are designed to be vertical only!

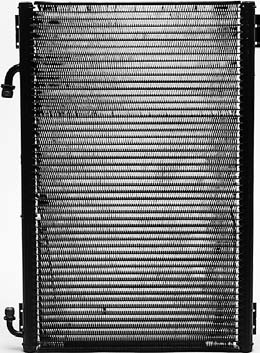

 ‘32 Ford SuperFlowTM Condenser Kit 03032-OFV Includes condenser, hard lines & brackets. 03332-VUC Condenser with brackets, #8 fitting at top and #6 at bottom - 20.75” tall x 14”wide x .75” thick 03704-OVH Unpainted condenser with brackets, #8 fitting at top and #6 at bottom - 20.75” tall x 14”wide x .75” thick |
|
