Big Block Chevy - Electric

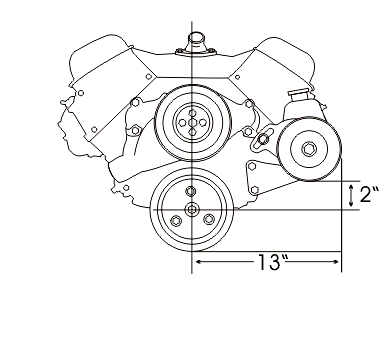

This mid-mount alternator bracket is designed to work with CSR (and possibly other) electric water pumps. The bracket bolts solid to the head and water pump, and lines the alternator up with a long water pump crank shaft pulley.

Part Number: 236R - ALT

Dimensions


This bracket bolts to the front of the block and head. Mounts the pump in approximately the same position as the factory bracket. Provides clearance for steering gears, etc. (Electric Water Pump Only).

Part Number: 418L - Power Steering

Dimensions


Type 2 Remote Reservoir Pump

This bracket is designed to be used with the metric G.M. remote reservoir type 2 pump. Designed for street rod applications, it sits high enough to clear most chassis parts and steering gears. Pump is driven off the inner groove of a 3 groove crank pulley. Pump uses an aluminum V-belt pulley available from us or other street rod suppliers.



Part Number: 414L - Power Steering



Dimensions



We can also also supply and install all your radiator, electric cooling fan and shroud needs.

Supply
We offer a wide range of components and kits.

Installation
We can install all the systems and components that we sell.
