Serpentine

Our Serpentine system was designed for the small block Chevy with a reverse rotation LONG water pump. G.M. part number 88894005. These pumps were used on 1989 - 93 caprice cars and 1988 - 95 trucks as well as a few other applications. System also requires the use of factory Chevrolet steel pulleys


Bolts to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads. The A.C. compressor bracket fits all G.M. aluminum heads and may be used on 1969 thru 1986 cast iron heads by drilling and tapping one hole for the upper mounting point. Will clear up to 3 3/4 in. tall valve covers when used on 1986 and earlier heads.

Part Number: 305 - A.C. & Alt.

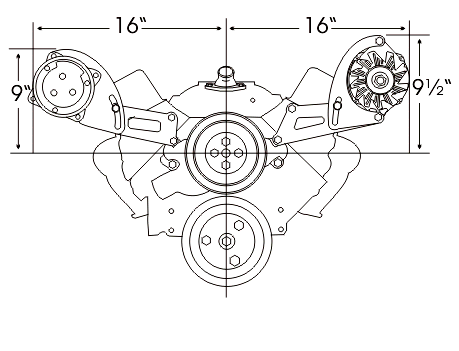

Dimensions


Bolts to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads. Compressor bracket is designed to be used with 1987 and newer cast iron heads including the popular Vortec. Will clear up to 3 in. tall valve covers

Part Number: 306 - A.C. & Alt.

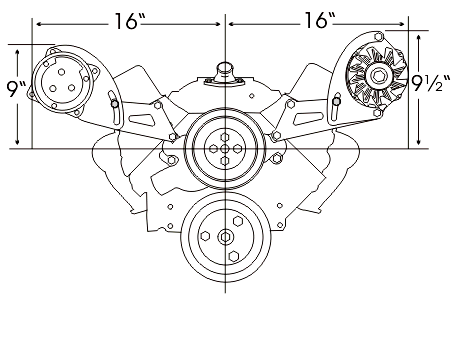

Dimension


Designed for cars with low hood clearance and wide engine compartments -- trucks, 50-60's cars, even Vettes and Camaros. These brackets bolt to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads. The A.C. compressor bracket fits all G.M. aluminum heads and may be used on 1969 thru 1986 cast iron heads by drilling and tapping one hole for the upper mounting point. Bracket comes complete with idler assembly and CNC machined aluminum idler pulleys with double row bearings.

Part Number: 307- A.C. & Alt.

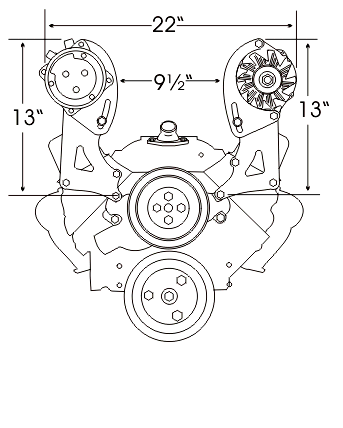

Dimensions


Designed for cars with low hood clearance and wide engine compartments -- trucks, 50-60's cars, even Vettes and Camaros. These brackets bolt to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads. The compressor bracket is designed to be used with 1987 and later cast iron heads including the popular Vortec. Bracket comes complete with idler assembly and CNC machined aluminum idler pulleys with double row bearings.

Part Number: 308- A.C. & Alt.

Dimensions


Serpentine power steering pump bracket is designed for our LONG water pump serpentine systems above. Bracket is non-adjustable

Part Number: 408L - Power Steering Pump





We can also also supply and install all your radiator, electric cooling fan and shroud needs.

Supply
We offer a wide range of components and kits.

Installation
We can install all the systems and components that we sell.
